Innolux G238HCJ-LH1
Innolux G238HCJ-LH1 is a 23.8 inch, 1920 × 1080 FHD, WLED backlight, LVDS interface, 1000nits high brightness, -30°C~80°C wide temperature, 30-pin 2ch-LVDS, RGB vertical stripe LCD module for outdoor or semi-outdoor industrial equipment, …
Key parameters
| Panel maker | Innolux |
| Model | G238HCJ-LH1 |
| Category | LCD module |
| Size | 23.8″ |
| Resolution | 1920 × 1080 FHD |
| Interface | LVDS |
| Brightness | 1000 cd/m² |
| Connector | 30-pin 2ch LVDS |
| Operating temp. | -30 ~ +80 °C |
| Backlight | WLED |
| Colour filter | RGB vertical stripe |
Sourcing notes
Before quoting G238HCJ-LH1, please provide the full suffix, version code, label photo, target quantity, grade requirement and destination country. For this module type, key checks include backlight specification, connector location, mechanical ears, version code and batch consistency. For LVDS projects, single/dual channel, 30-pin/51-pin connectors and backlight power design should be verified.

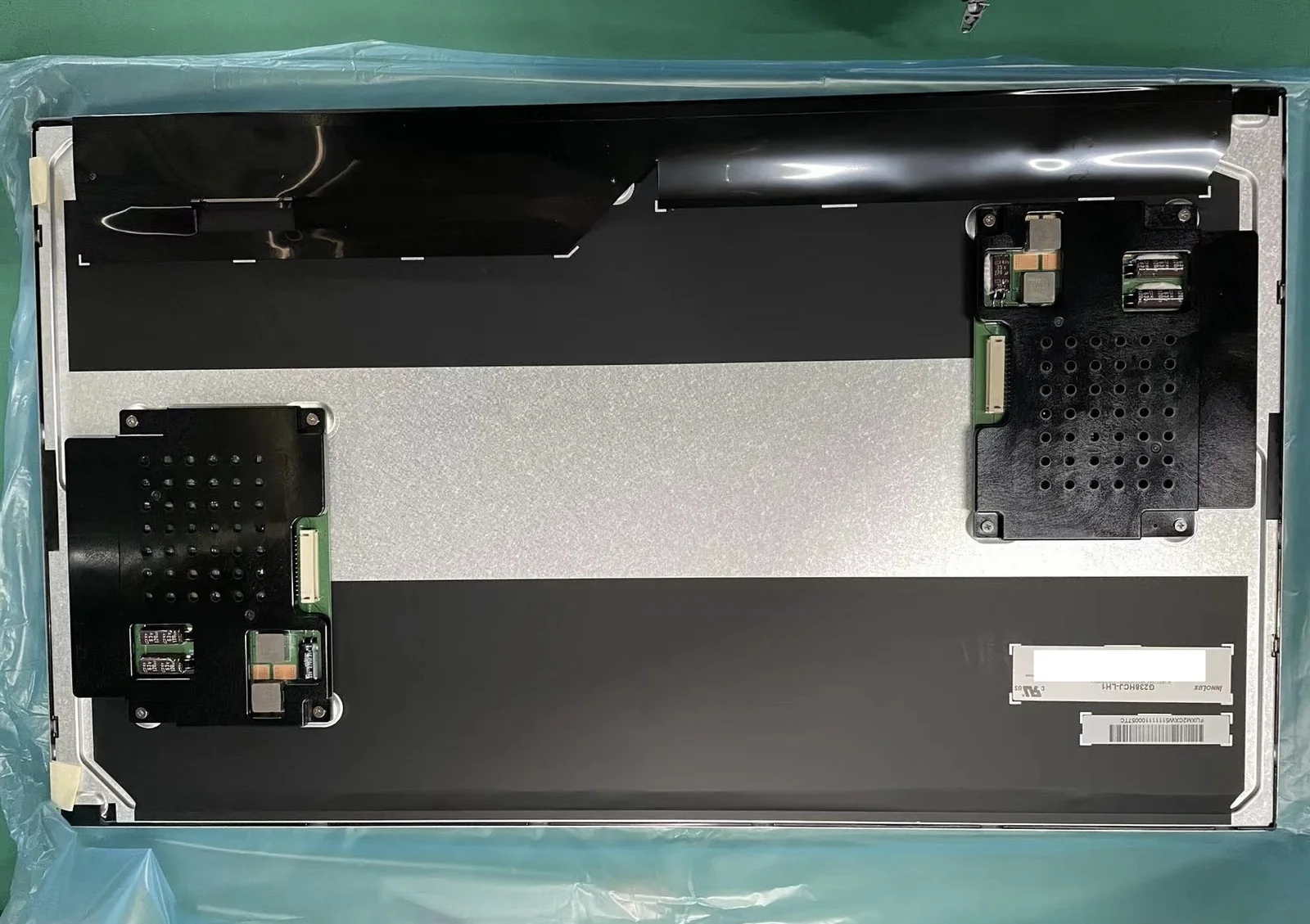

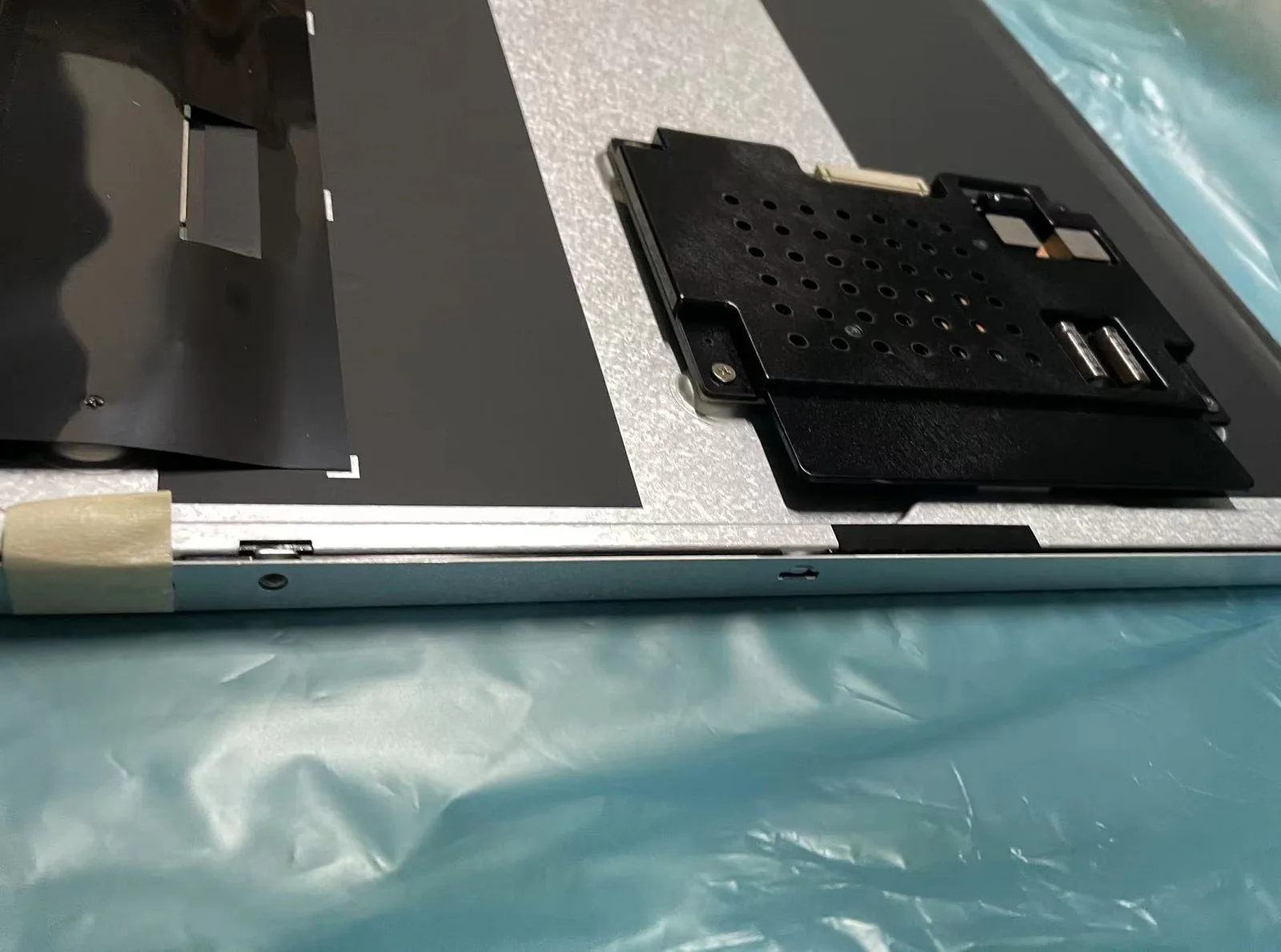

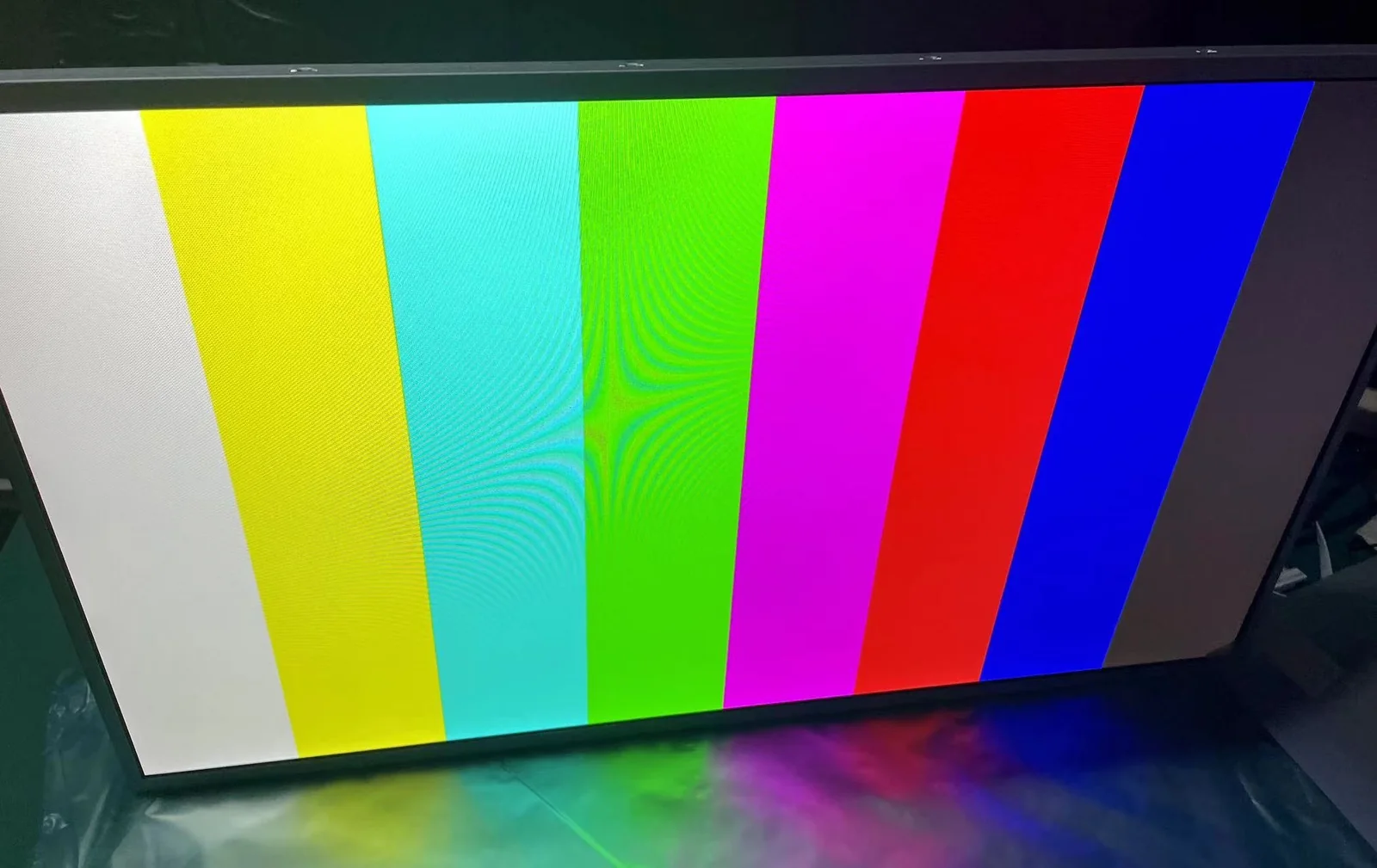

SZ145 can help verify availability, alternative models, packing, shipping and bulk delivery options based on the Innolux model number, LVDS, 1920 × 1080 FHD and 23.8 inch. This model has been cross-checked with a datasheet and real photos, making it a strong entry point for high-brightness wide-temperature LCD module inquiries. 5 product photos are available for checking front view, rear view, connector, label, structure details and packing condition.
